New Cummins ISC Engine Assy

BBENG35

Engine Assys

Cummins

ISC

330

3735

3735

CM2150

New

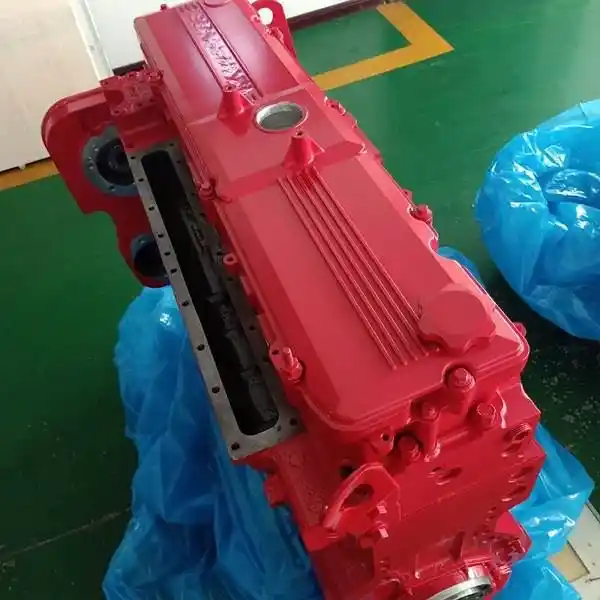

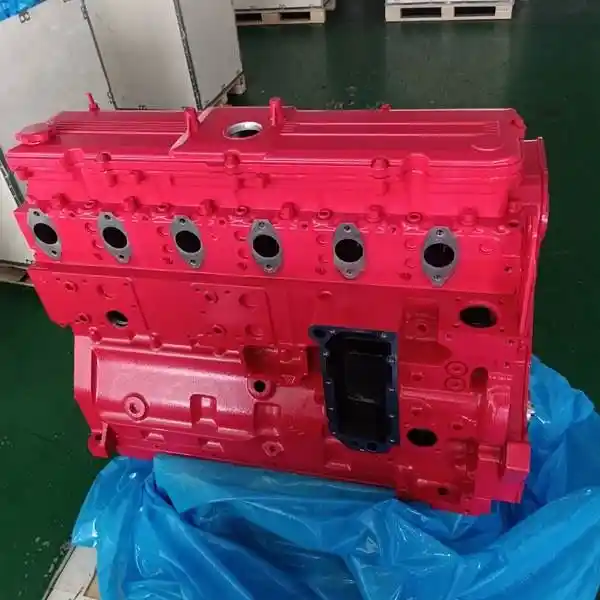

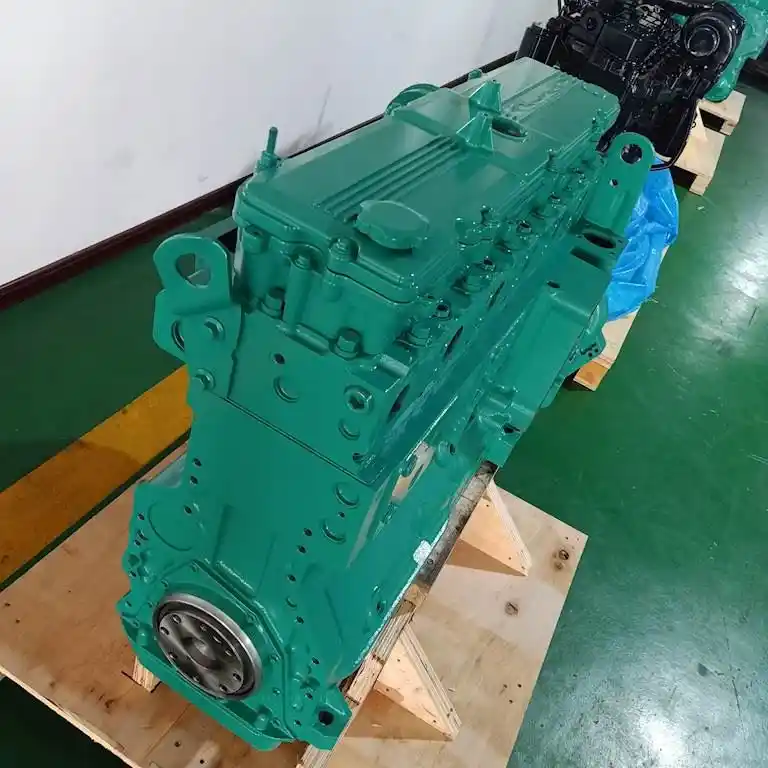

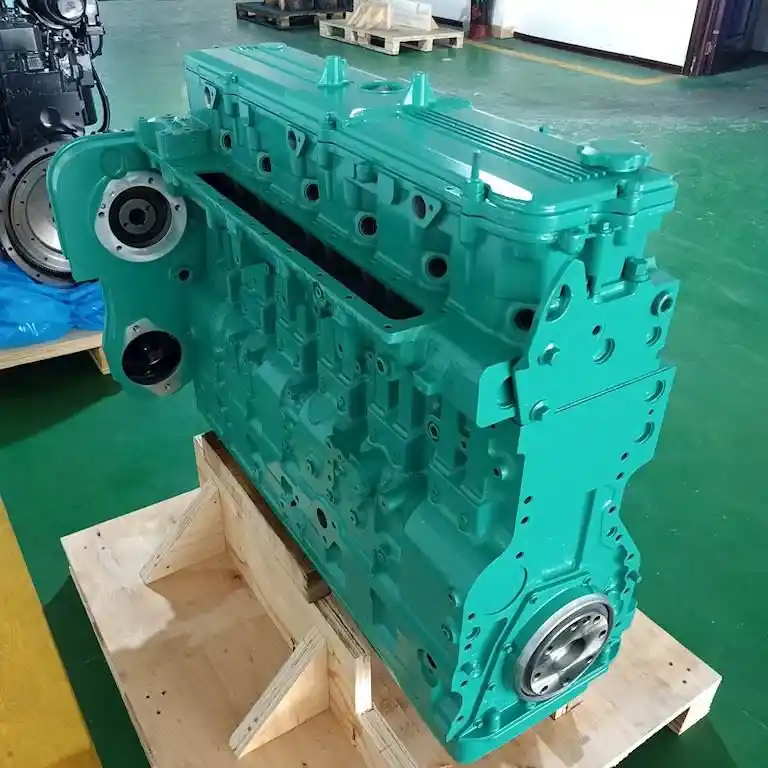

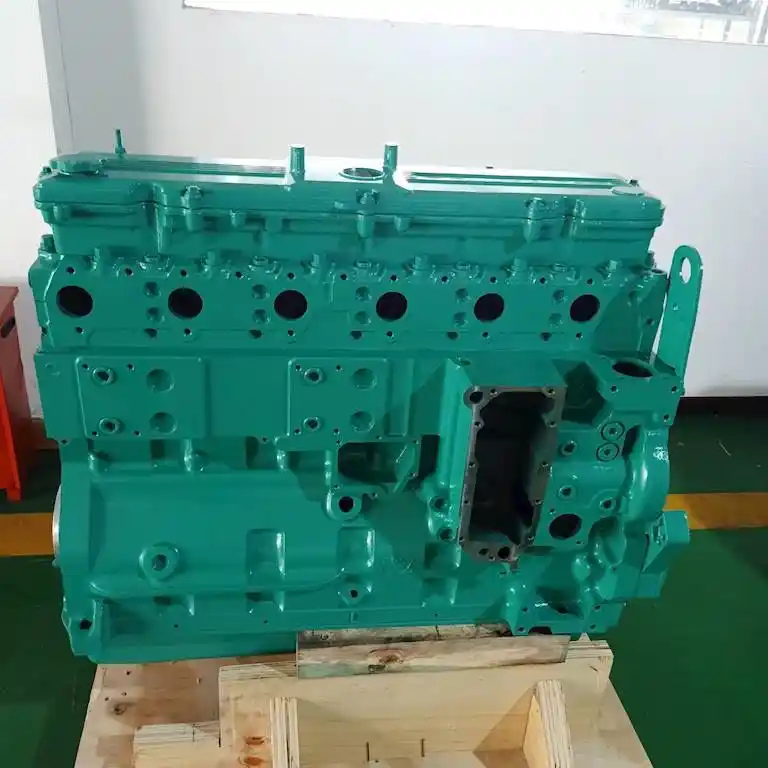

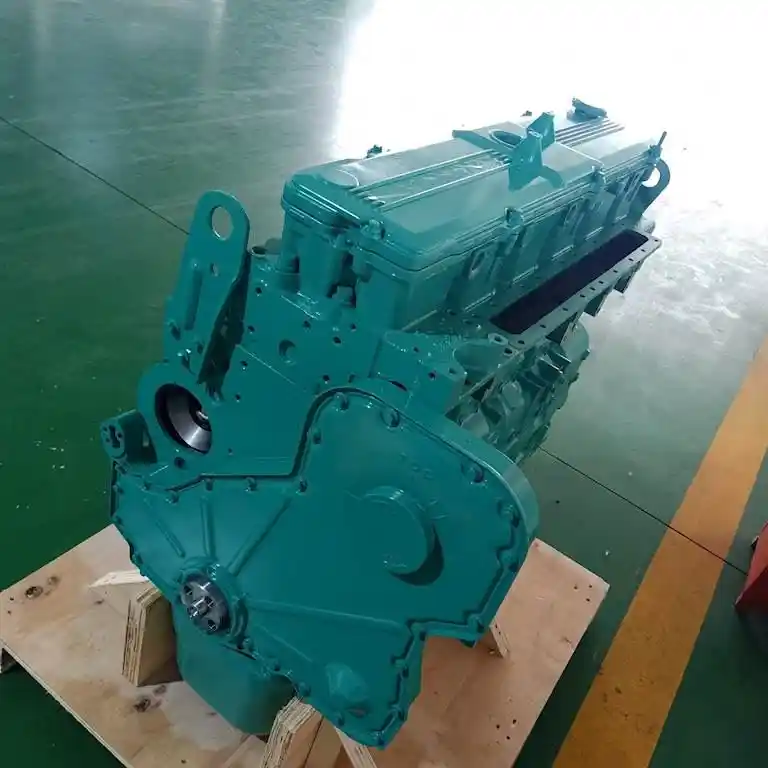

Surplus Component Build 330 HP ISC/QSC 8.3 L Long Block Block: Our 330 HP 8.3 L component build (combination of new parts and reman components) long blocks fits a variety of CPLs and ESN. The long blocks are all brand new castings built to a 3/4 engine configuration. The 8.3 L long blocks may fit both ISC (on-road) and QSC (off-road) applications. Typical uses are Peterbilt, Kenworth, Sterling, Bluebird Trucks, Buses, RVs for on-highway use and excavators, wood chippers, logging equipment, forklifts, pumps, blowers, pavers, generators and small heavy equipment for off-highway use. The component built units are to CM850, CM2150, CM2250 configurations. NOTE: If the fit doesn't match your existing application we can build a custom remanufactured long block to your ESN. Give us a call to determine what you've got and how we can help. Long Block Parts List: ? Cylinder Block (4993369) ? Cylinder Head (5256469) ? Camshaft (3966430) ? Followers/Lifters ? Pistons (330 HP Rated: 4932720) ? Gaskets and Bearings ? Rings ? Plugs and Bolts ? Push Rods ? Connecting Rods ? Front Cover ? Timed Front Gear Train Group ? Crankshaft ? Oil Pump ? Oil Cooler ? Freeze Plugs and Block Plugs ? Front Rear and Main Seal ? Valve Cover ? Oil pickup tube ? Front Sump Oil Pan ? Outright Pricing (No Core Charge) ? 3/4 Long Block Does not include ECM, Wiring Harness, Fuel Pump, Turbo, Injectors ? Standard 1 Year Parts Replacement Warranty ? 1 or 2 Year Extended Warranties Available Engine Specs: • Configuration Displacement: Inline 6 Cylinder 8.3 L • Bore x Stroke: 506.5 cubic inches 5.31” x 4.49” • Cylinder Head: Cast Iron • Engine Block: Cast Iron • EPA Certification Level: 2007 High Pressure Common Rail • After-treatment Rate: 50 lbs, 23 kg • Injection: Cummins Accumulator Pump System • Aspiration: Turbocharged Aftercooled • Clutch Engagement: Torque500 lb-ft • Weight: 1630 lbs (Dry) • Oil Capacity: 6.3 Gallons • Governor Speed: Hydramechanical or PSG (2200-2500 RPM) • Horsepower: 240 - 400 hp @ 2500 rpm 179 -298 kW • Torque: 670 - 1,075 lb-ft You’ve come to the right place for all of your heavy duty diesel engine needs. We here at Big Bear Engine Company are old school machine shop guys that know the value of your time whether it be out in the field for an industrial job or at play with an off-road engine swap. We are old school machine shop guys and guarantee the workmanship of all of our engines including our: Cummins ISC/QSC 8.3 - 330 HP Long Block Diesel Engines. Fits To Equipment Trucks, Buses, RVs, Execavators, Wood Chippers, Logging Equipment, Forklifts, Telehandlers, Forklifts, Pumps, Compressors, Pavers, Blowers, Generators Fits To Make(s) Peterbuilt, Kenworth, Sterling, Bluebird, Paccar, International, Volvo, Western Star Fits To Model(s) Freightliner M2 106, M2 112, Cascadia 113, Cascadia 125, Columbia 112, Columbia 120, Coronado 122, 122 SD, 132, FL70, FL60, FL80, FL112, FLC112, FLD120, Peterbilt: 281 288 289 330 335 337 340 345 348 349 350 351 357 358 358A 358F 359 359A 359EXHD 359M 359ST 365 366 367 370 371 372 375 376 377 377A 377AE 377SB 377SFFA 377ST 378 378B 378SB 378SF 378SFFA 379 379EXHD 379X 384 385 386 387 388 389 390 567 579 587 B3406 Kenworth: T300, Bluebird - Express 4500 Will Fit Year(s) 1998-2012 Engine Horse Power 330 HP Engine Brake No Emission Rating Tier 2 Engine Displacement 8.3 Engine Size 6-Cyl Induction Direct Injected Turbo No Additional Details Includes Warranty Yes Warranty Expiration Date 1 Year Parts Replacement Warranty Term in Months 12 Warranty Term in Miles 1000000
